Products

Involute Gear Hobs

Involute Gear Hobs

Involute Gear Hobs for generating gears of maximum accuracy, manufactured in finishing, pre-shaving with or without protuberance and semi-topping profiles. These are supplied in single or multi-starts in class 'AA', 'A' & 'B'.

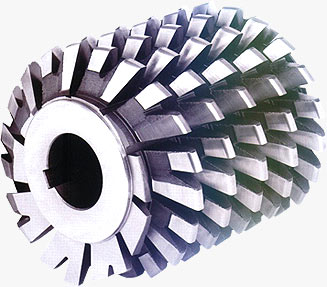

Involute Spline Hobs

Involute Spline Hobs

Involute Spline Hobs for cutting all types of standard and non-standard involute splines as per DIN 5480, 5481 & 5482. These are manufactured in pressure angles 20°, 30°, 37.5°, and 45° with or without shoulder clearances in single or multi-start designs.

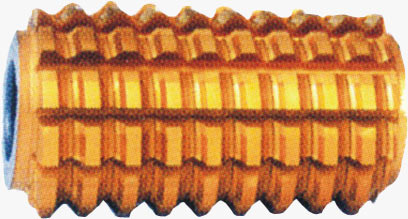

Straight Spline Hobs

Straight Spline Hobs

Straight Spline Hobs are used for cutting parallel splines. These are manufactured with or without lugs, semi-topping, and shoulder clearance types in Class 'AA' & 'A'.

Sprocket Hobs

Sprocket Hobs

Sprocket Hobs are manufactured for chain sprocket tooth forms as per BS, JIS, DIN, ASA standards with non-topping or full-topping types in single or multi-start designs.

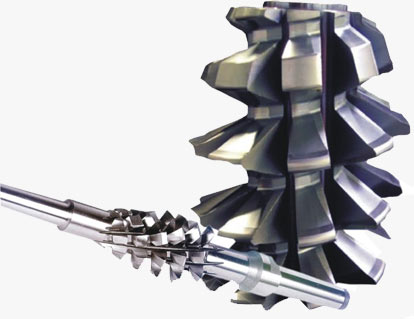

Worm Wheel Hobs

Worm Wheel Hobs

Worm Wheel Hobs are manufactured in bore type and shank type in single or multi-start, topping or non-topping as per DIN, BS specifications or as per customer's requirement.

Chamfer Hobs

Chamfer Hobs

Chamfer Hobs are generally used for chamfering of entering end of ring gears. These are available in various types as per drawing of components.

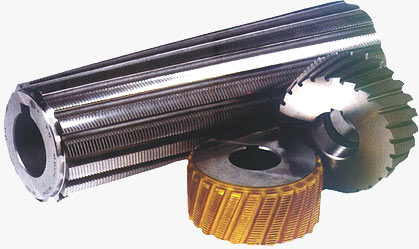

Saw Blade Hobs

Saw Blade Hobs

Ground and Unground saw blade hobs for hack saw blade and band saw applications.

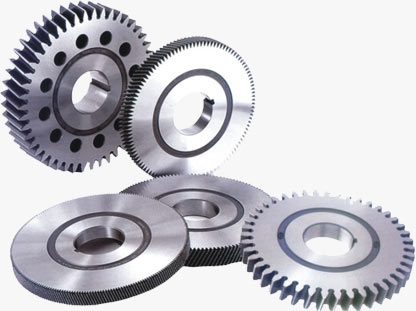

Shaving Cutters

Shaving Cutters

These HSS cutters are supplied in conventional type, diagonal, plunge cut with a wide range of sizes according to the customer requirement. Cutters are designed with profiles to incorporate them with tip relief, depth crowning, lead crowning etc., on component.

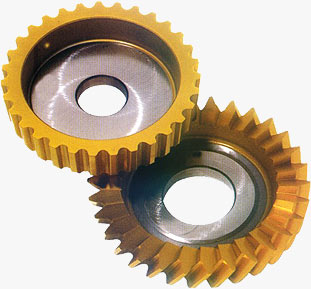

Disk Type Cutters

Disk Type Cutters

These shaper cutters have a disc shape, which has the general utility to give roughing or finish form to cut spur, helical & spline gear.

Shaper Cutters

Shaper Cutters

This type of cutter is used to cut internal gears of small diameter and spline holes. They can also be designed for external gears depending on the job.

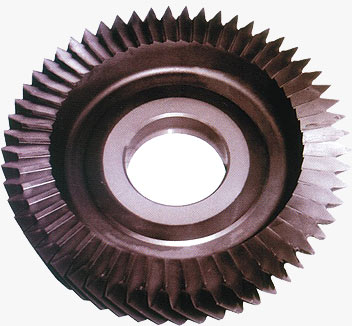

Hub Type Shaper Cutters

Hub Type Shaper Cutters

These cutters can be used for roughing & finishing external gears where it is not feasible to use external disc type cutters.

Segmented Type Straight Bevel Gear Cutter

Segmented Type Straight Bevel Gear Cutter

(For Mass Production of Bevel Gears) Roughing, finishing & completing type suitable for 16", 21" & 25" Diameter cutter bodies. Also includes Deburring Tools. Material: H.S.S AISI – M2.

Pairs

Pairs

A pair of Straight bevel gear shaping generation cutter blades in type I to IV suitable for all types of machines, supplied in module range 0.3 to 20 mm. Material: H.S.S AISI - M2, M35.

Konvoid Blades

Konvoid Blades

Various Konvoid blade sets available: ZFTK 250 X 5 (Set of 44 Blades), ZFTK 500 X 10 (Set of 56 Blades), Russian Konovoid Blades (Set of 36 Blades), Klingelnberg Blades (Set of 72 Blades). Material: H.S.S AISI - M2, M35.

Coniflex Blades

Coniflex Blades

Inserted Type Blades suitable for cutting large Straight Gears. Material: H.S.S AISI – M2.

Spiromatic Blades

Spiromatic Blades

From Dia. 70 mm to 108 mm suitable for Oerlikon Spiral Bevel Gear Machines. Material: H.S.S AISI – M2.

Curvex Type Blades

Curvex Type Blades

Manufactured both with and without Toprem, suitable for WMW Spiral Bevel Gear Machines. Available in various diameters: 75 mm (Set of 8 Blades), 106 mm (Set of 10 Blades), 150 mm (Set of 12 Blades), 212 mm (Set of 16 Blades), 300 mm (Set of 18 Blades). Material: H.S.S AISI – M2.
